[Control] Mobile robot Control

  • -



0. Mobile robot

먼저 위키에서 설명하는 이동로봇이라 함은 다음과 같다.



이동로봇(Mobile Robot)은 지상에 고정된 로봇이 아닌 움직이는 로봇이다.
바퀴형 이동로봇(wheel-type mobile robot)과 보행형 이동로봇(legged mobile robot 또는 locomotive robot)이 있다.


이동 로봇 - 위키백과, 우리 모두의 백과사전

위키백과, 우리 모두의 백과사전.

ko.wikipedia.org



이번 글에서는 이동로봇의 kinematic model의 비선형 제어기 설계에 대해 다뤄본다.




1. Mobile robot kinematic model

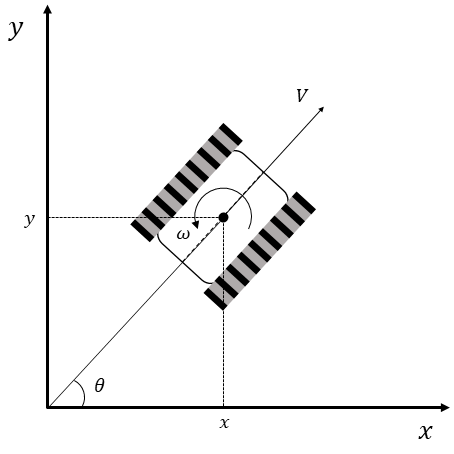

[Fig. 1] kinematic model of the Mobile Robot

$$ \begin{cases} \dot{x} = v\cos\theta\\ \dot{y} = v\sin\theta\\ \dot{\theta} = \omega \end{cases} $$



이동로봇의 kinematic model은 위와 같다.

식에서 볼 수 있듯이 제어 입력은 $v$, $\omega$, 각각 선속도, 각속도이다.

하지만 제어 대상은 $\dot{x}$, $\dot{y}$, $\dot{\theta}$로 Underactuated system이다.



1-1. Desired model of mobile robot

이동로봇의 reference model은 다음과 같다.

$$ \begin{cases} \dot{x}_{d} = v_{d}\cos\theta_{d}\\ \dot{y}_{d} = v_{d}\sin\theta_{d}\\ \dot{\theta}_{d} = \omega _{d}\end{cases} $$



2. Define error

Lyapunov function을 설정하기 전 오차를 정의한다.

오차는 제어 목적을 달성하기 위한 오차를 정의한다.

$x \rightarrow x_{d}$, $y \rightarrow y_{d}$, $\theta \rightarrow \theta_{d}$로 보내기 위해 오차를 정의하게 되면 다음과 같다.

2-1.처럼 정의된 오차는 잘못된 오차임을 먼저 밝힌다.




2-1. Define of incorrect error

$$\begin{bmatrix} e_{1}\\ e_{2}\\ e_{3} \end{bmatrix} = \begin{bmatrix} x - x_{d}\\ y - y_{d}\\ \theta - \theta_{d} \end{bmatrix}$$

이렇게 정의될 경우 Underactuated system에서 제어는 어렵다.

(아래 논문 참조)



A locomotion control method for autonomous vehicles

The authors present a locomotion control method for autonomous vehicles. The main difficulties in controlling an autonomous vehicle lie in the fact that vehicles usually have three degrees of freedom in position and orientation in spite of having only two

ieeexplore.ieee.org



따라서 논문에서 설명한 대로 오차를 다시 정의한다.




2-2. Define of correct error



논문의 식 (4)와 같이 오차를 정의하면 다음과 같다.

$$ \begin{bmatrix} e_{1}\\ e_{2}\\ e_{3}\\ \end{bmatrix} = \begin{bmatrix} \cos\theta & \sin\theta & 0\\ -\sin\theta & \cos\theta & 0\\ 0 & 0 & 1 \end{bmatrix} \begin{bmatrix} x - x_{d}\\ y - y_{d}\\ \theta - \theta_{d} \end{bmatrix}$$



이를 계산해 보면 아래와 같다.

$$ \begin{align} e_{1} &= \cos\theta \left( x - x_{d} \right) + \sin\theta \left( y - y_{d} \right)\\ e_{2} &= -\sin\theta \left( x - x_{d} \right) + \cos\theta \left( y - y_{d} \right)\\ e_{3} &= \theta - \theta_{d} \end{align} $$



각 오차를 시간에 대해 미분하면 다음과 같다.

\begin{align} \dot{e}_{1} &= -\dot{\theta}\sin\theta \left( x - x_{d} \right) + \cos\theta \left( \dot{x} - \dot{x}_{d} \right) +  \dot{\theta}\cos\theta \left( y - y_{d} \right) + \sin\theta \left( \dot{y} - \dot{y}_{d} \right)\\ &= -\dot{\theta} \sin\theta \left( x - x_{d} \right) + \cos\theta \left( v\cos\theta - v_{d}\cos\theta_{d} \right) + \dot{\theta}\cos\theta\left( y - y_{d} \right)  + \sin\theta \left( v\sin\theta - v_{d}\sin\theta_{d} \right)\\ &= \dot{\theta}\{ -\sin\theta \left( x - x_{d} \right) + \cos\theta \left( y - y_{d} \right) \} + v\left( \sin^{2}\theta + \cos^{2}\theta \right) - v_{d}\left(\cos\theta\cos\theta_{d} + \sin\theta\sin\theta_{d} \right)\\ &= \omega e_{2} + v - v_{d}\cos\left( \theta - \theta_{d} \right)\\ &= \omega e_{2} + v - v_{d}\cos e_{3}\\\\ \dot{e}_{2} &= -\dot{\theta}\cos\theta \left( x - x_{d} \right) - \sin\theta \left( \dot{x} - \dot{x}_{d} \right) -  \dot{\theta}\sin\theta \left( y - y_{d} \right) + \cos\theta \left( \dot{y} - \dot{y}_{d} \right)\\ &= -\dot{\theta} \cos\theta \left( x - x_{d} \right) - \sin\theta \left( v\cos\theta - v_{d}\cos\theta_{d} \right) - \dot{\theta}\sin\theta\left( y - y_{d} \right)  + \cos\theta \left( v\sin\theta - v_{d}\sin\theta_{d} \right)\\ &= \dot{\theta}\{ -\cos\theta \left( x - x_{d} \right) - \sin\theta \left( y - y_{d} \right) \} - v\sin\theta\cos\theta + \sin\theta\cos\theta + v_{d}\left(\sin\theta\cos\theta_{d} - \cos\theta\sin\theta_{d} \right)\\ &= - \omega e_{1} + v_{d}\sin\left( \theta - \theta_{d} \right)\\ &= - \omega e_{1} + v_{d}\sin e_{3}\\\\ \dot{e}_{3} &= \dot{\theta} - \dot{\theta}_{d}\\ &= \omega - \omega_{d} \end{align}



이때 $\dot{x}$, $\dot{y}$, $\dot{\theta}$는 이동로봇의 kinematic model, $\dot{x}_{d}$, $\dot{y}_{d}$, $\dot{\theta}_{d}$는 이동로봇의 reference model을 대입하면 된다.

또한 삼각함수 덧셈 공식을 활용하여 간단하게 나타낼 수 있다.




3. Lyapunov function

정의된 오차를 기반으로 Lyapunov function을 정의한다.

$$ \begin{align} V &= \frac{1}{2} \left( e_{1}^{2} + e_{2}^{2} \right) + \frac{1 - \cos e_{3}}{k_{2}} \end{align} $$

where, $k_{2}$ is positive control gain.



이를 시간에 대해 미분하면 다음과 같다.

$$ \begin{align} \dot{V} &= e_{1}\dot{e}_{1} + e_{2}\dot{e}_{2} + \frac{sin e_{3}}{k_{2}}\dot{e}_{3}\\ &= e_{1}\left( \omega e_{2} + v - v_{d}\cos e_{3} \right) + e_{2} \left( -\omega e_{1} + v_{d}\sin e_{3} \right) + \frac{\sin e_{3}}{k_{2}}\left( \omega - \omega_{d} \right) \end{align} $$



여기서 negative definite 함을 만족시키기 위한 제어 입력은 다음과 같다.

$$ \begin{align} v &= v_{d}\cos e_{3} - k_{1}e_{1}\\ \omega &= \omega_{d} - k_{3}\sin e_{3} - v_{d}k_{2}e_{2} \end{align} $$

where, $k_{1}$, $k_{2}$, $k_{3}$ is positive control gain.



변하지 않는 중요한 사실 중 하나는 제어 입력은 모두 알고 있는 값으로 구성되어야 한다.

위의 설계된 제어기는 모두 알고 있는 값이므로 문제없다.



이를 다시 time derivative of Lyapunov function에 대입하여 정리하면 아래와 같다.

$$ \begin{align} \dot{V} &= e_{1}\left( \omega e_{2} + v - v_{d}\cos e_{3} \right) + e_{2} \left( -\omega e_{1} + v_{d}\sin e_{3} \right) + \frac{\sin e_{3}}{k_{2}}\left( \omega - \omega_{d} \right)\\ &= e_{1}\left( \omega e_{2} + v_{d}\cos e_{3} - k_{1}e_{1} - v_{d}\cos e_{3} \right) + e_{2} \left( -\omega e_{1} + v_{d}\sin e_{3} \right) + \frac{\sin e_{3}}{k_{2}}\left( \omega_{d} - k_{3}\sin e_{3} - v_{d}k_{2}e_{2} - \omega_{d} \right)\\ &= \omega e_{1}e_{2} + e_{1}v_{d}\cos e_{3} - k_{1}e_{1}^{2} - e_{1}v_{d}\cos e_{3} - \omega e_{1}e_{2} + e_{2}v_{d}\sin e_{3} - \frac{k_{3}}{k_{2}}\sin^{2}e_{3} - e_{2}v_{d}\sin e_{3}\\ &= -k_{1}e_{1}^{2} - \frac{k_{3}}{k_{2}}\sin^{2}e_{3} \end{align} $$




4. MATLAB simulation

MATLAB simulation결과는 다음과 같다.




4-1 1st Trajectory

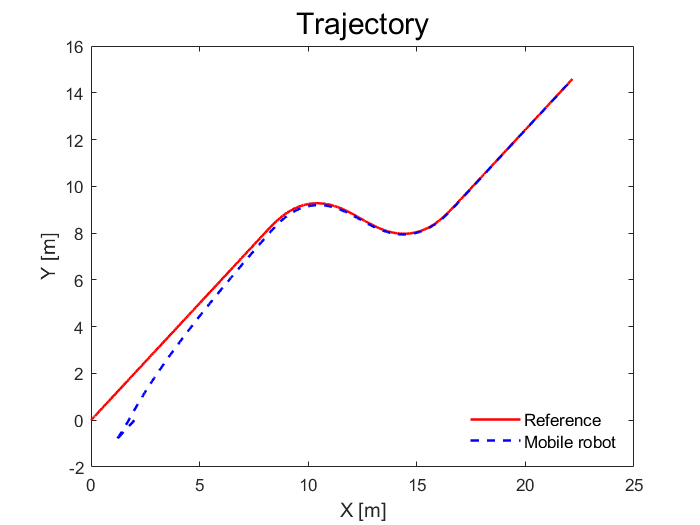

[Fig. 2] Trajectory1

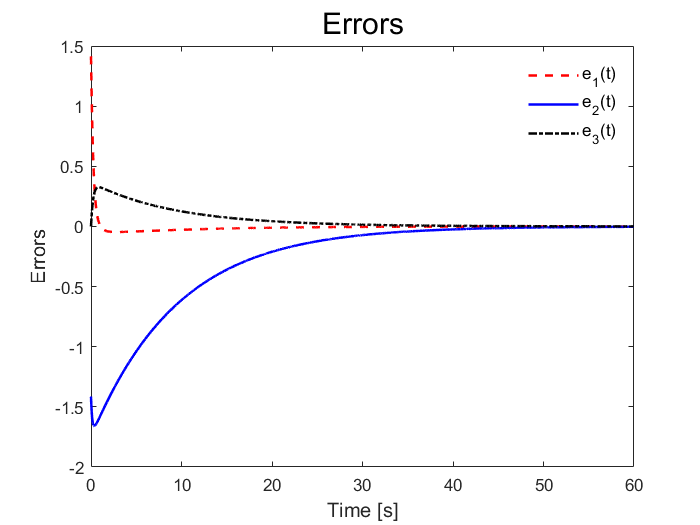

[Fig. 3] Error1

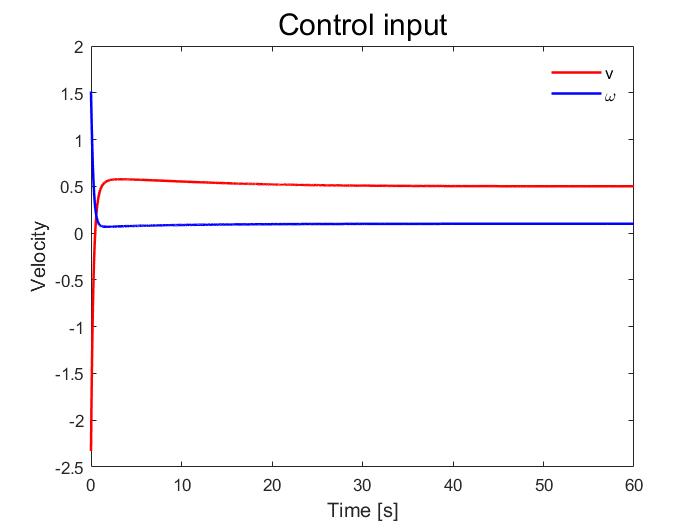

[Fig. 4] Control input1




4-2. 2nd Trajectory

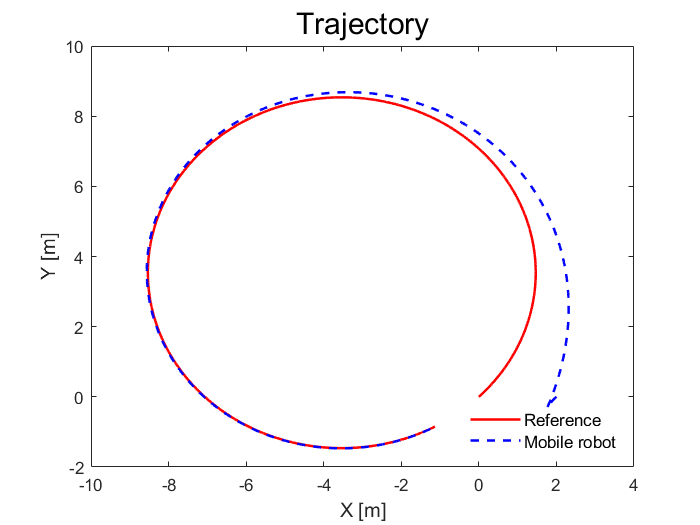

[Fig. 5] Trajectory2

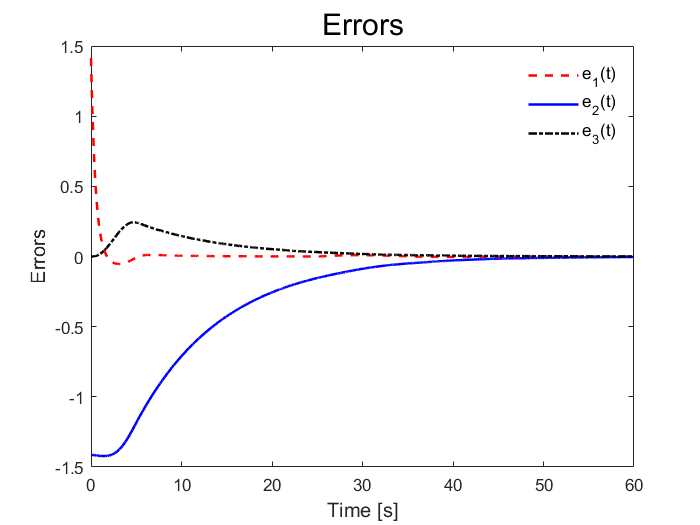

[Fig. 6] Error2

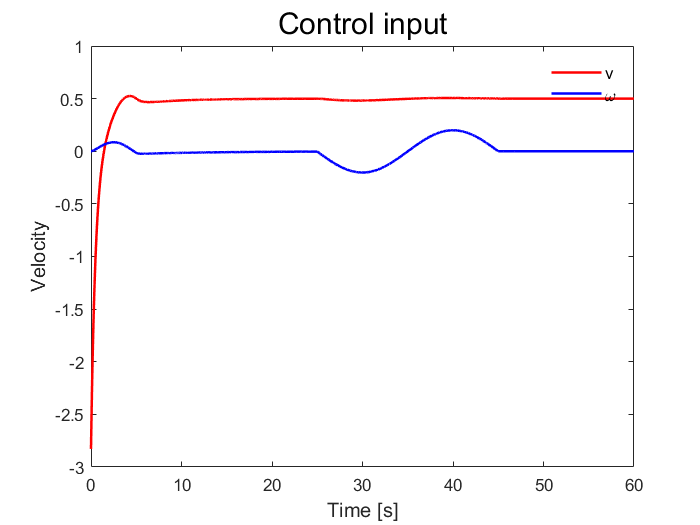

[Fig. 7] Control input2




4-3. MATLAB code (.m file)

해당 simulation의 코드는 다음과 같다.

직접 m파일을 생성하여 돌려보면 된다.

clear; close all; clc;

%%
t0 = 0;                                                 % Define sampling time
ts = 0.01;
tf = 60;
t = t0:ts:tf;
iter = fix((tf-t0)/ts);

Xd = [0 0 pi/4];                                        % Define state Xd = [xd yd θd]
X = [2 0 pi/4];                                         % Define state X = [x y θ]

%%
% Define gain %
k = [2 2 5];

%%
for i = 1:iter

% define desired value
    if i < 500
        vd(i) = 0.25*(1-cos(pi*t(i)/5));
        wd(i) = 0;
    elseif i < 2500
        vd(i) = 0.5;
        wd(i) = 0;
    elseif i < 4500
        vd(i) = 0.5;
        wd(i) = 0.2*cos(2*pi*t(i)/20);
    else
        vd(i) = 0.5;
        wd(i) = 0;
    end

%      vd(i) = 0.5;
%      wd(i) = 0.1;

    ud(i,:) = [vd(i) wd(i)];                            % Desired velocity

% define error
    e(i,:) = [cos(X(i,3)) sin(X(i,3)) 0 ; -sin(X(i,3)) cos(X(i,3)) 0 ; 0 0 1]*[X(i,1)-Xd(i,1) ; X(i,2)-Xd(i,2) ; X(i,3)-Xd(i,3)];

% control input
    v(i) = vd(i)*cos(e(i,3))-k(1)*e(i,1);
    w(i) = wd(i)-k(3)*sin(e(i,3))-vd(i)*k(2)*e(i,2);
    u(i,:) = [v(i) w(i)];

% update
    Xd(i+1,:) = Xd(i,:) + [ud(i,1)*cos(Xd(i,3)) ud(i,1)*sin(Xd(i,3)) ud(i,2)]*ts;
    X(i+1,:) = X(i,:) + [u(i,1)*cos(X(i,3)) u(i,1)*sin(X(i,3)) u(i,2)]*ts;
end

%%
figure('Name', 'Trajectory', 'color', 'w');             % Plot trajectory
plot(Xd(1:iter,1), Xd(1:iter,2), 'r', 'linewidth', 1.5);
hold on
plot(X(1:iter,1), X(1:iter,2), 'b--', 'linewidth', 1.5);
hold off
legend({'Reference','Mobile robot'}, 'Fontsize', 10, 'Box', 'off','Location', 'southeast');
xlabel('X [m]', 'FontSize', 12);
ylabel('Y [m]', 'FontSize', 12);
title('Trajectory', 'FontSize', 18);

figure('Name', 'Error','color',' w');                   % Plot error
plot(t(1:iter), e(1:iter,1), 'r--', 'linewidth', 1.5)
hold on
plot(t(1:iter), e(1:iter,2), 'b', 'linewidth', 1.5);
hold on
plot(t(1:iter), e(1:iter,3), 'k-.', 'linewidth', 1.5);
hold off
legend({'e_{1}(t)','e_{2}(t)','e_{3}(t)'}, 'Fontsize', 10, 'Box', 'off');
xlabel('Time [s]', 'FontSize', 12);
ylabel('Errors', 'FontSize', 12);
title('Errors', 'FontSize', 18);

figure('Name', 'Control input', 'color',' w');          % Plot control input
plot(t(1:iter), u(1:iter,1), 'r', 'linewidth', 1.5);
hold on
plot(t(1:iter), u(1:iter,2), 'b', 'linewidth', 1.5);
hold off
legend({'v', '\omega'}, 'Fontsize', 10, 'Box', 'off');
xlabel('Time [s]', 'FontSize', 12);
ylabel('Velocity', 'FontSize', 12);
title('Control input', 'FontSize', 18);
